Willmore flow for the radially symmetric case in in three space dimensions

A dumbbell with a very thin neck stays regular


Scale: Radius at neck = 0.01, radius of ends = 1, length of figure = 5.21.
Shape of neck: Modeled on y=x2.
Time step = 10-6.
Spatial resolution of generating curve = 0.01-0.05.
System: Toshiba 4015CDT Laptop with an Intel Pentium II 266 MHz.
Computation time: About 42 minutes.

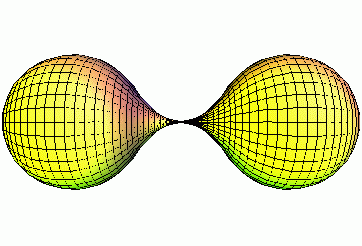

After 0 time steps.
after 0 steps

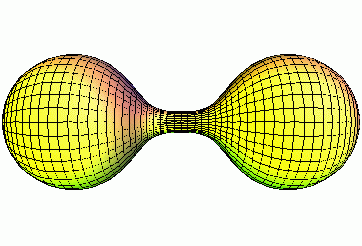

After 1,000 time steps.
after 1,000 steps

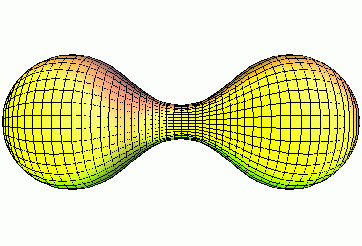

After 10,000 time steps.
after 10,000 steps

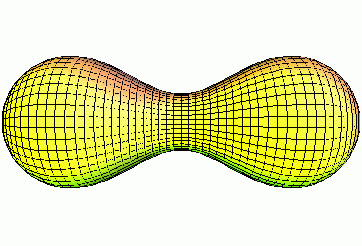

After 50,000 time steps.
after 50,000 steps

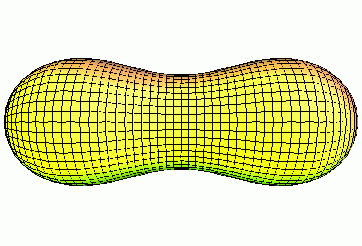

After 200,000 time steps.
after 200,000 steps

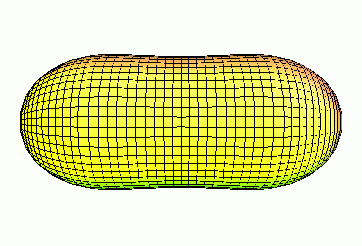

After 500,000 time steps.
after 500,000 steps

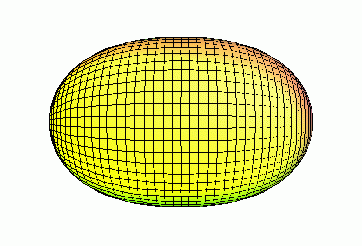

After 1,000,000 time steps.
after 1000,000 steps

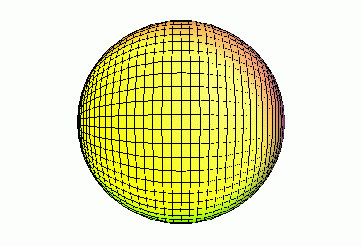

After 2,500,000 time steps.
after 2500,000 steps
