Willmore flow for the radially symmetric case in in three space dimensions

An erythrocyte becomes temporarily immersed

(Graphics show half of the surface of revolution)

Scale: Separation in middle = 0.02, major radius = 1.9, minor radius = 0.62.
Shape of center: Modeled on y=x4.
Time step = 10-6.
Spatial resolution of generating curve = 0.02-1.00.
System: Dell Vostro 1510 Laptop with an Intel Dual Core 1.80 GHz.
Computation time: About 9 minutes.


After 0 time steps.
after 0 steps after 0 steps

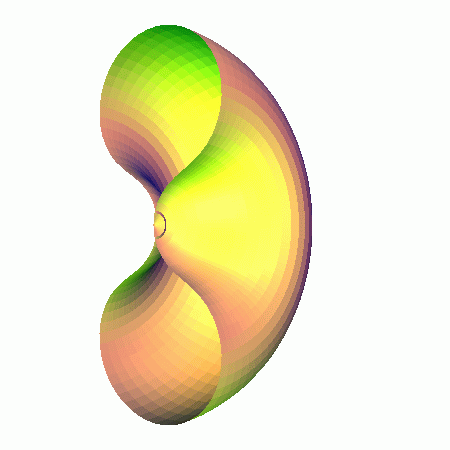

After 1,000 time steps.
after 1,000 steps after 1,000 steps

After 2,000 time steps.
after 2,000 steps after 2,000 steps

After 3,000 time steps.
after 3,000 steps after 3,000 steps

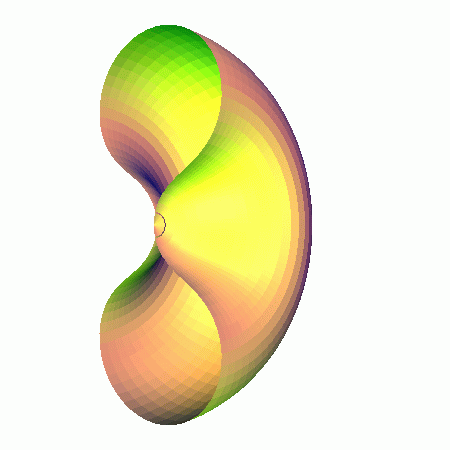

After 4,000 time steps.
after 4,000 steps after 4,000 steps

After 5,000 time steps.
after 5,000 steps after 5,000 steps

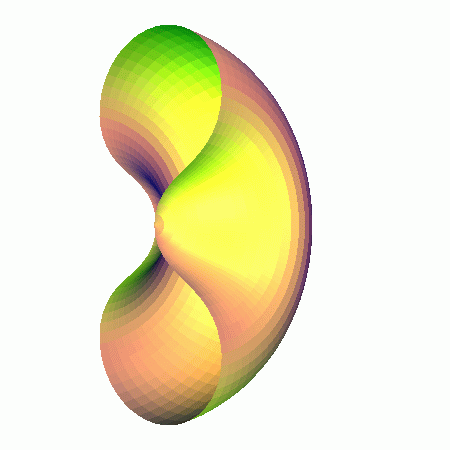

After 6,000 time steps.
after 6,000 steps after 6,000 steps

After 7,000 time steps.
after 7,000 steps after 7,000 steps

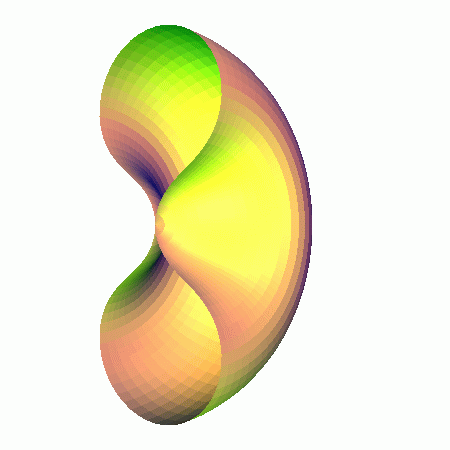

After 8,000 time steps.
after 8,000 steps after 8,000 steps

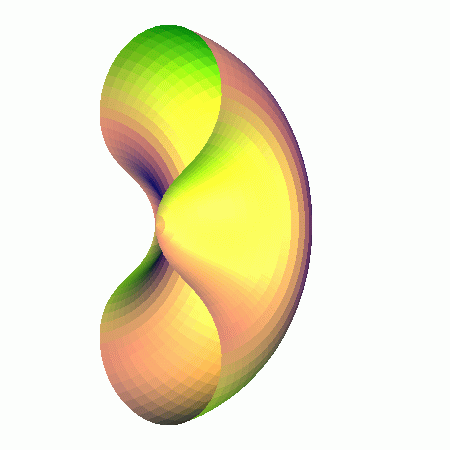

After 9,000 time steps.
after 9,000 steps after 9,000 steps

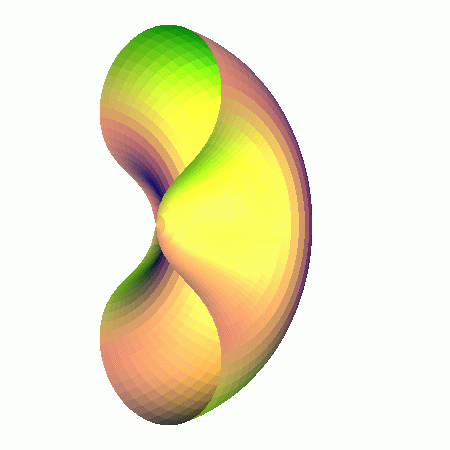

After 10,000 time steps.
after 10,000 steps after 10,000 steps

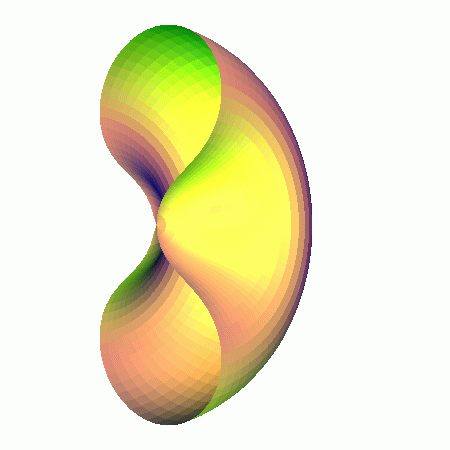

After 11,000 time steps.
after 11,000 steps after 11,000 steps

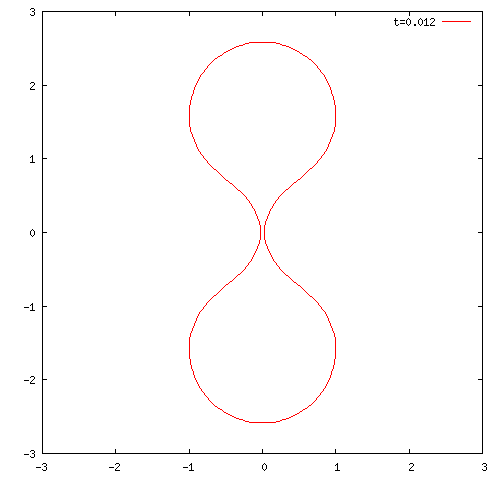

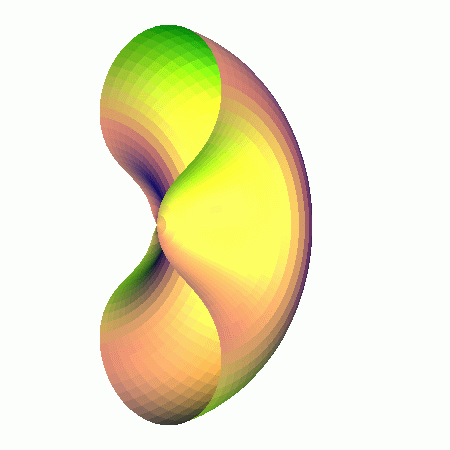

After 12,000 time steps.
after 12,000 steps after 12,000 steps

After 15,000 time steps.
after 15,000 steps after 15,000 steps

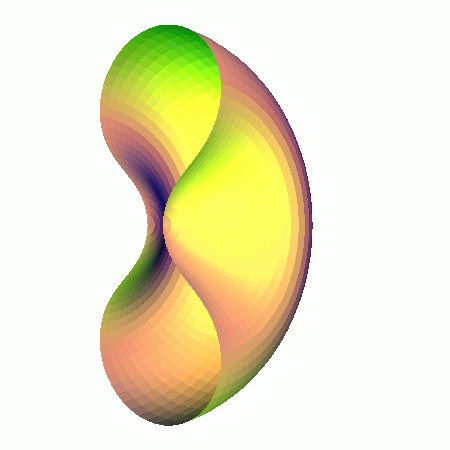

After 25,000 time steps.
after 25,000 steps after 25,000 steps

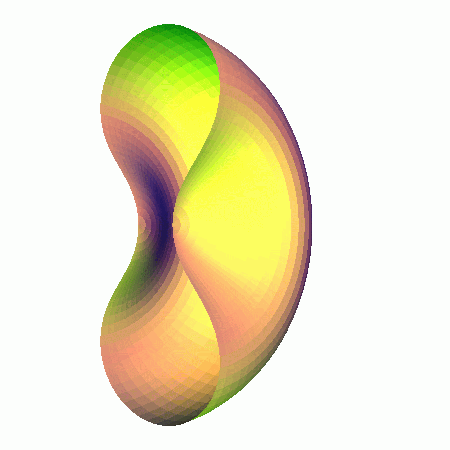

After 50,000 time steps.
after 50,000 steps after 50,000 steps

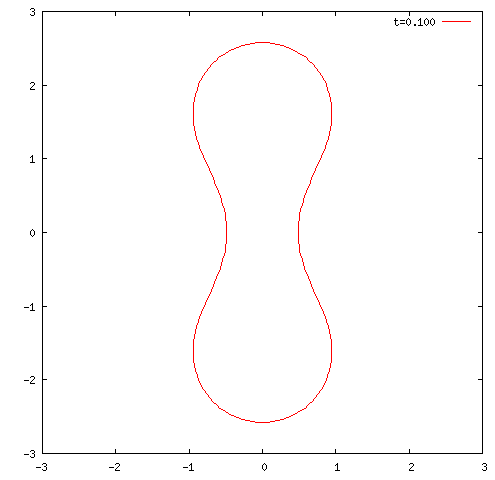

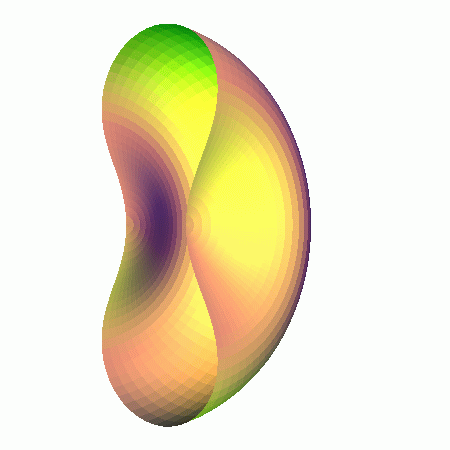

After 100,000 time steps.
after 100,000 steps after 100,000 steps

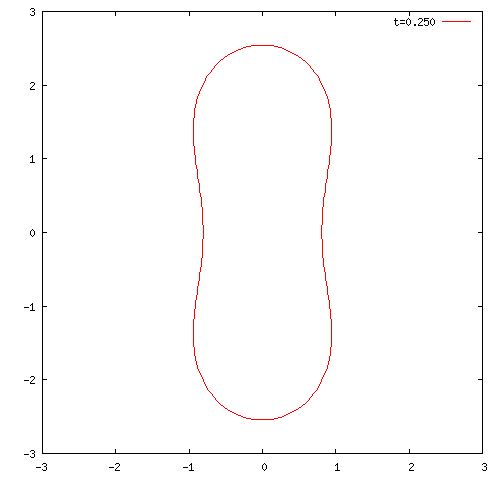

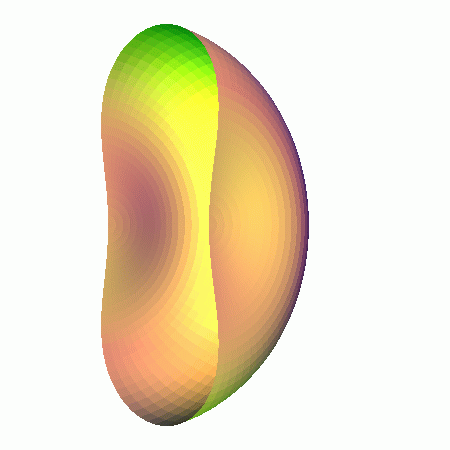

After 250,000 time steps.
after 250,000 steps after 250,000 steps

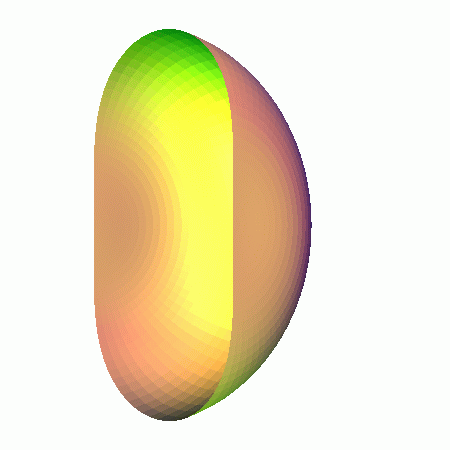

After 500,000 time steps.
after 500,000 steps after 500,000 steps

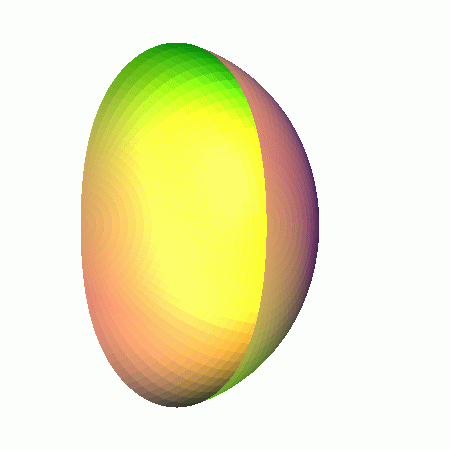

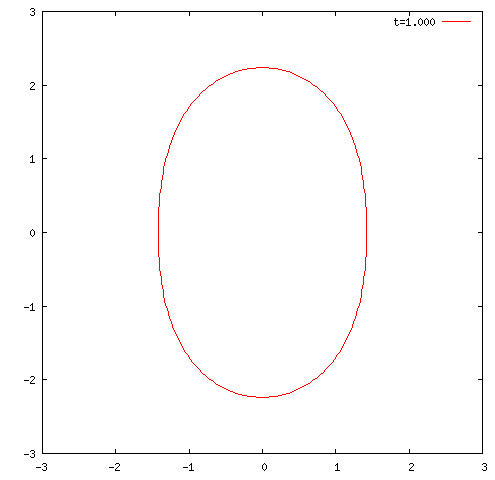

After 1,000,000 time steps.
after 1000,000 steps after 1000,000 steps

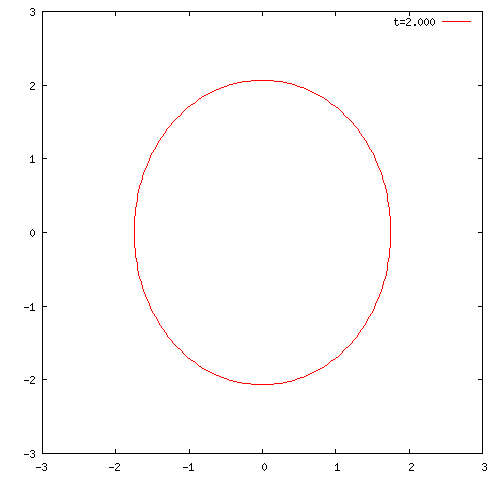

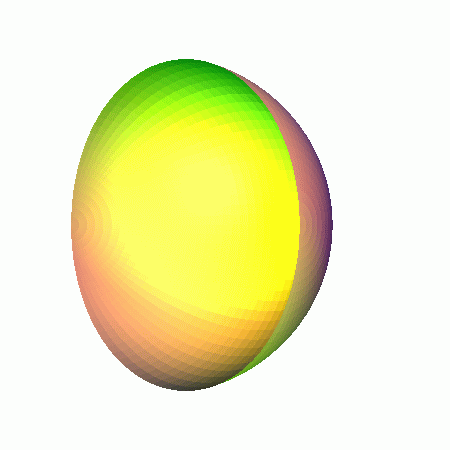

After 2,000,000 time steps.
after 2000,000 steps after 2000,000 steps

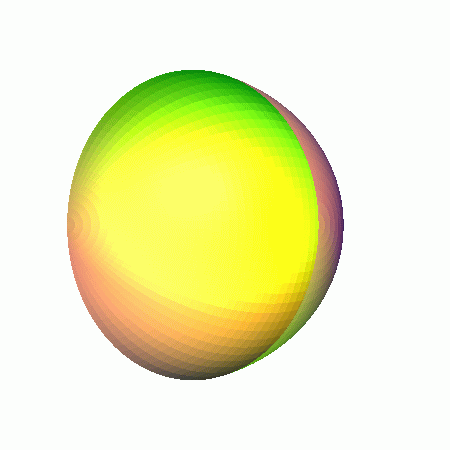

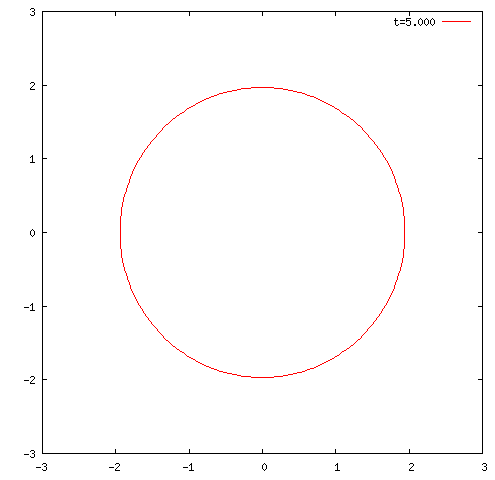

After 5,000,000 time steps.
after 5000,000 steps after 5000,000 steps
